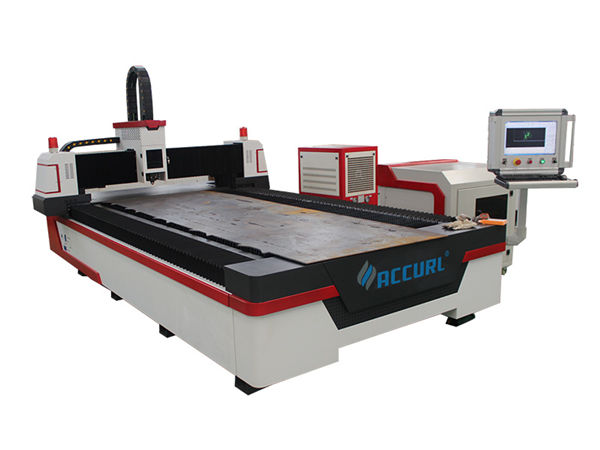

fiber optical path industrial laser cutting machine compact with automatic nesting system

Detalhes do produto

Certificação: ISO9001: 2008

Pagamento e envio termos:

Quantidade Mínima de Encomenda: 1

Negociação de preços

Detalhes da embalagem: Caso De Madeira Padrão

Tempo de entrega: 7-15 dias

Capacidade de fornecimento: 1000 unidades / mês

Descrição detalhada do produto

Nome do Produto:	Fully Enclosed Fiber Laser Cutting Machine	Laser de fibra:	1000W
Área de trabalho:	3000 * 1500 mm	Precisão:	± 0,03-0,05 mm
Fonte de energia:	380v	Garantia:	1 ano

Principais características

It is with full cover can use for both cutting metal sheet and pipes fiber laser cutting machine.Adopt Maxphotonics laser source and high precision rack and linear guide to transmit.
Can cut lines and holes with different from different directions on the pipe.
Can cut inclined section at the end of the pipe.
Can cut beanch pipe intersected with the main circular pipe.
Can cut square hole,waist-shaped hole and circular hole on the pipe.
Can truncate the pipe.
Can cut all kinds of graphics on the surface of the square pipe.
Can cut different sizes metal sheets.
Can cut holes on the molding box.

Characteristics

1, High speed, high precision, high efficiency and low cost
2, Easy on operation, fiber optical path, without tediously adjustment on optical path
3, Compact structure, good sealing, strongly adaptable to changes in the environment.
4, With the perfect automatic nesting system which can save time, save the materials, the sheet utilization ratio up to 95%

Parâmetros Técnicos

^{FONTE DE LASER}	^{LASER Maxphotonics}
^{CABEÇA DE CORTE}	^{RAYTOOLS BT-240}
^{MODO DE CONDUÇÃO}	^{UNIDADE DUPLA}
^TRANSMISSÃO	^{TAIWAN APEX}
^{GUIA DO TRILHO}	^{TAIWAN TPI}
^{SERVO MOTOR E MOTORISTA}	^{4 conjuntos de YASKAWA DO JAPÃO}
^REDUTOR	^{FRANÇA MOTOREDUCER}
^{RESFRIADOR DE ÁGUA}	^TEYU
^{SISTEMA DE CONTROLE}	^{CYPCUT DE SHANGHAI, CHINA}
^COMPUTADOR	^{COMPUTADOR INDUSTRIAL}
^{REQUISITO DE ENERGIA}	^{3 FASE AC 380V 50HZ}
^{PESO BRUTO}	^3,05MTS
^{LINHA TERMINAL}	^{FRANÇA SCHNEIDER}
^{RETRANSMISSÃO}	^{FRANÇA SCHNEIDER}
^{VALOR SOLENÓIDE}	^{SMC JAPAN}
^{VALOR PROPORCIONAL}	^{JAPANESE SMC}
^{TAMANHO DE TRABALHO}	^{3000*1500 MM}

As peças acessórias

1.High precision screw imported CNC fiber laser cutting machine. It use Maxphotonics fiber laser laser
fiber laser source is small and light, which helps to move easily. Its easy integration, stable performance and good quality are well guaranteed.
2. Cabeça de cortador de laser de fibra de tubo especial e sistema de seguimento automático.

As amostras e aplicação

Fully Enclosed Fiber Laser Cutting Machine for metal pipes can be applied for Different profiles,including round pipes, square tubes, rectangular tubes or triangular tubes,etc,of carbon steel, stainless steel,etc;
Suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, and ventilation pipes, signs, metal and other metal parts processing industry, sports industry.
