Detalhes do produto
Certificação: ISO9001: 2008
Pagamento e envio termos:
Quantidade Mínima de Encomenda: 1 conjunto
Negociação de preços
Detalhes da embalagem: caixa de madeira
Tempo de entrega: 15 dias úteis
Capacidade de fornecimento: 2000 conjuntos
Descrição detalhada do produto
| Nome do Produto: | Máquina de corte a laser de fibra | Tipo de laser: | Laser de fibra |
|---|---|---|---|
| Potência do laser: | 500 w, 800 w, 1000 w | Área de trabalho: | 3000 * 1500 mm |
| Nome: | Máquina de corte do laser da fibra do cnc | Característica: | Stable Performance, High Efficiency And Low Cost. |
Features Metal Cutting Machine Fiber Laser
1. Laser
Adopting the world’s top fiber laser, stable performance, high efficiency and low cost.
Adopting the world’s top fiber laser, stable performance, high efficiency and low cost.
2. Mechanical structure
With double drive closed-loop structure displacement, Y direction has a strong driving force and high speed, which can give full play to the high speed characteristics of fiber laser.
After two times of aging treatment, the structure of bed body is strengthened to ensure the stability and precision of bed body for a long time.
With double drive closed-loop structure displacement, Y direction has a strong driving force and high speed, which can give full play to the high speed characteristics of fiber laser.
After two times of aging treatment, the structure of bed body is strengthened to ensure the stability and precision of bed body for a long time.
3. Control system
By using open CNC system provided by the top suppliers and integrating the company experience in laser industry for many years, the man-machine interface is so simple and more convenient to operate.
By using open CNC system provided by the top suppliers and integrating the company experience in laser industry for many years, the man-machine interface is so simple and more convenient to operate.
4. Follow-up cutting head
By using the follow-up cutting head of international famous brand, the laser is always in the focus position, can ensure the cutting effect.
By using the follow-up cutting head of international famous brand, the laser is always in the focus position, can ensure the cutting effect.
5. Metal nesting software
The optimized software algorithm can save the material to the maximum extent. Integrated a variety of specialty metal cutting technology such as common edge,bridge and micro connection,the difficulty of operation is reduced, so that improves the material management function, make full use of waste materials and meet the management needs.
6. Auxiliary air blowing system
System combines high and low voltage conversion gas path and three gas source structure composed of high pressure air, nitrogen and oxygen, so customers can select the auxiliary gas according to the processing quality requirements and cost.
7. Lubrication system
The whole machine is equipped with lubrication system, which reduces the wear of moving parts and ensures the movement speed of the whole machine.
8. Editing system
The software supports the input and output of the general CAD format file (PLT, DXF, DST, AI, BMP, etc), as well as graphics editor (zoom, rotate, array, etc)function.
The optimized software algorithm can save the material to the maximum extent. Integrated a variety of specialty metal cutting technology such as common edge,bridge and micro connection,the difficulty of operation is reduced, so that improves the material management function, make full use of waste materials and meet the management needs.
6. Auxiliary air blowing system
System combines high and low voltage conversion gas path and three gas source structure composed of high pressure air, nitrogen and oxygen, so customers can select the auxiliary gas according to the processing quality requirements and cost.
7. Lubrication system
The whole machine is equipped with lubrication system, which reduces the wear of moving parts and ensures the movement speed of the whole machine.
8. Editing system
The software supports the input and output of the general CAD format file (PLT, DXF, DST, AI, BMP, etc), as well as graphics editor (zoom, rotate, array, etc)function.

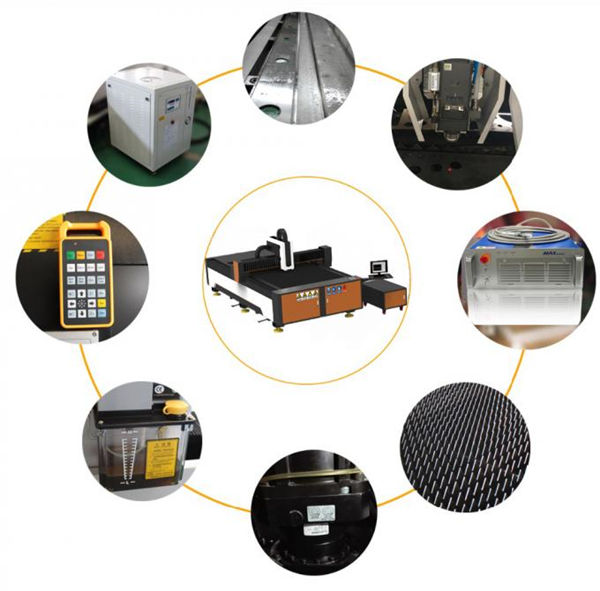

Configuração principal
| Item | Nome | Quantidade | Marca |
| Laser | Laser de fibra 800W | 1 SET | Maxphotonics |
| Cabeça de corte | Cabeça de corte especializada | 1 SET | RayTools BT (Suíça) |
| Cama da máquina | 1 SET | China | |
| Rack preciso | 1 SET | TAIWAN DINSENSE | |
| Corpo da máquina | Trilho de guia linear preciso | 1 SET | TAIWAN HIWIN / TAIWAN shac |
| X, servo do eixo Y e driver | 1 SET | LETRO | |
| Sistema redutor | 1 SET | TAIWAN DINSENSE | |
| controlador | 1 SET | FRANÇA Schneider | |
| Acessórios para camas de máquinas | 1 SET | China | |
| Sistema de corte digital | Sistema controlador | 1 SET | Shanghai cypcut / Shanghai Empower |
| Acessórios | Chiller | 1 SET | Teyu |
| Equipamentos de reciclagem de resíduos | 1 SET | China |
Aplicação de Laser de Fibra de Máquina de Corte
Materiais de aplicação: Equipamento de corte a laser de fibra é adequado para corte de metal com chapa de aço inoxidável, placa de aço suave, chapa de aço carbono, chapa de aço de liga, chapa de aço de mola, placa de ferro, ferro galvanizado, chapa galvanizada, chapa de alumínio, folha de cobre Placa de bronze, placa de ouro, placa de prata, placa de titânio, folha de metal, placa de metal, tubos e tubos, etc.
Indústrias de aplicação: Máquinas de corte a laser de fibra são amplamente utilizadas na fabricação de outdoor, publicidade, letras de metal, letras de LED, utensílios de cozinha, letras de publicidade, processamento de chapas, componentes e peças de metais, processamento de racks e armários, Metal Crafts, Metal Art Ware, elevador Corte de painel, etc.
500w fiber Speed for example
| Material | m / min |
| aço carbono 1mm | 8 |
| aço carbono 2mm | 4.2 |
| aço carbono 3mm | 2.1 |
| aço carbono 4mm | 1.2 |
| aço inoxidável 1mm | 7.2 |
| aço inoxidável 1.5mm | 3 |
| aço inoxidável 2mm | 1.8 |
| folha galvanizada0.8mm | 5 |
| folha galvanizada1.2mm | 2.6 |
| folha galvanizada1.5mm | 1.8 |
